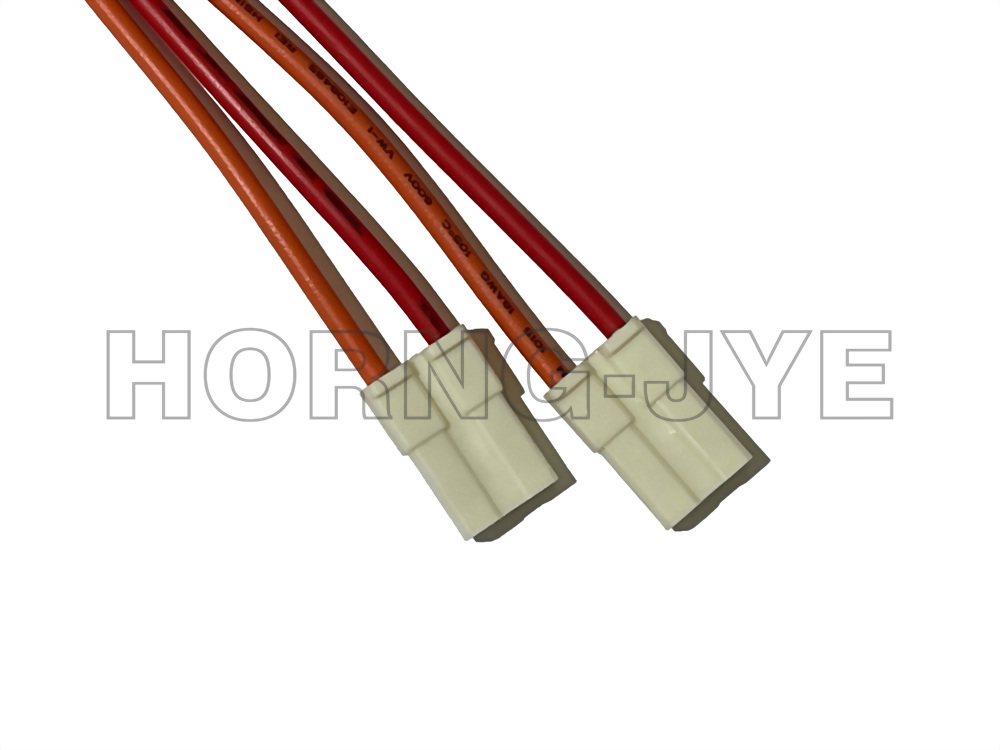

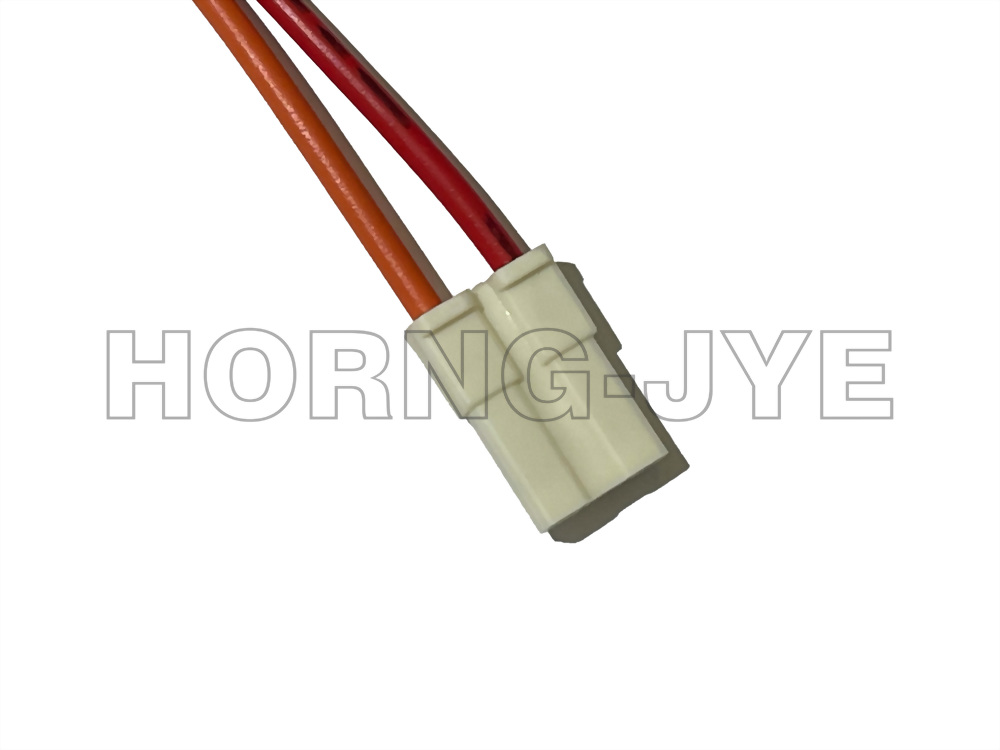

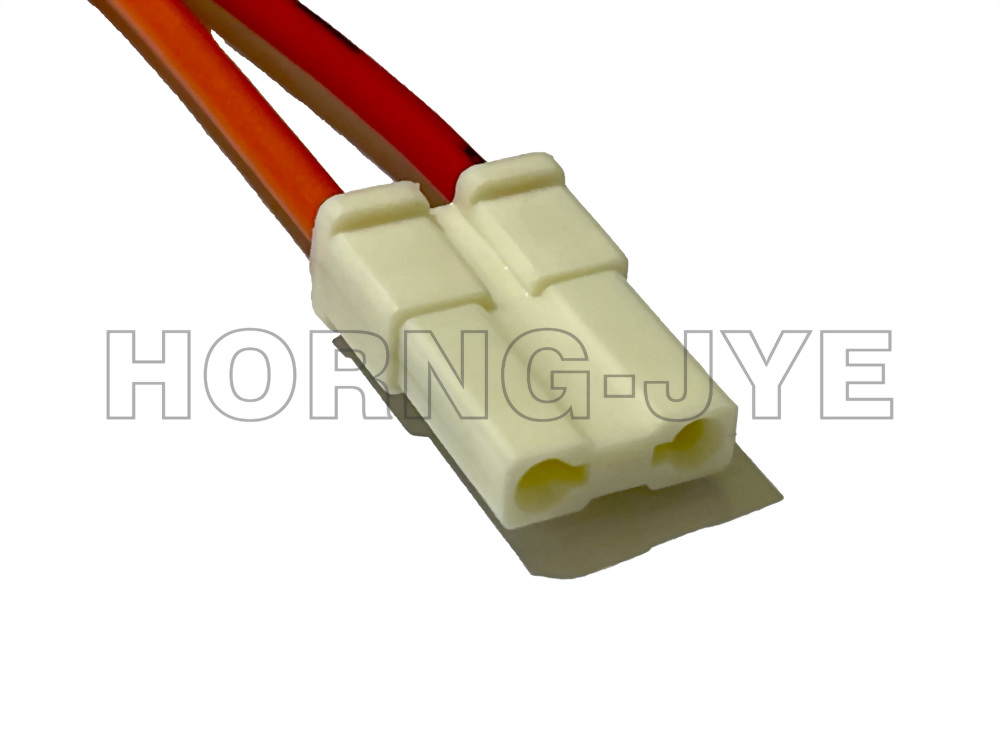

PH7.5x5
型號 :
AET-7501-0501
Current rating : 5A AC,DC
Voltage rating : 250V AC,DC
Temperature range :-25°C to +85°C
(including temperature rise)
Contact resistance : Initial value/10mΩ Max.
After environmental testing/20mΩ Max.
Insulation resistance : 500MΩ MIN.
Withstanding voltage : 1000V AC/minute
Applicable wire : AWG#18~22
Voltage rating : 250V AC,DC
Temperature range :
(including temperature rise)
Contact resistance : Initial value/10mΩ Max.
After environmental testing/20mΩ Max.
Insulation resistance : 500MΩ MIN.
Withstanding voltage : 1000V AC/minute
Applicable wire : AWG#18~22
